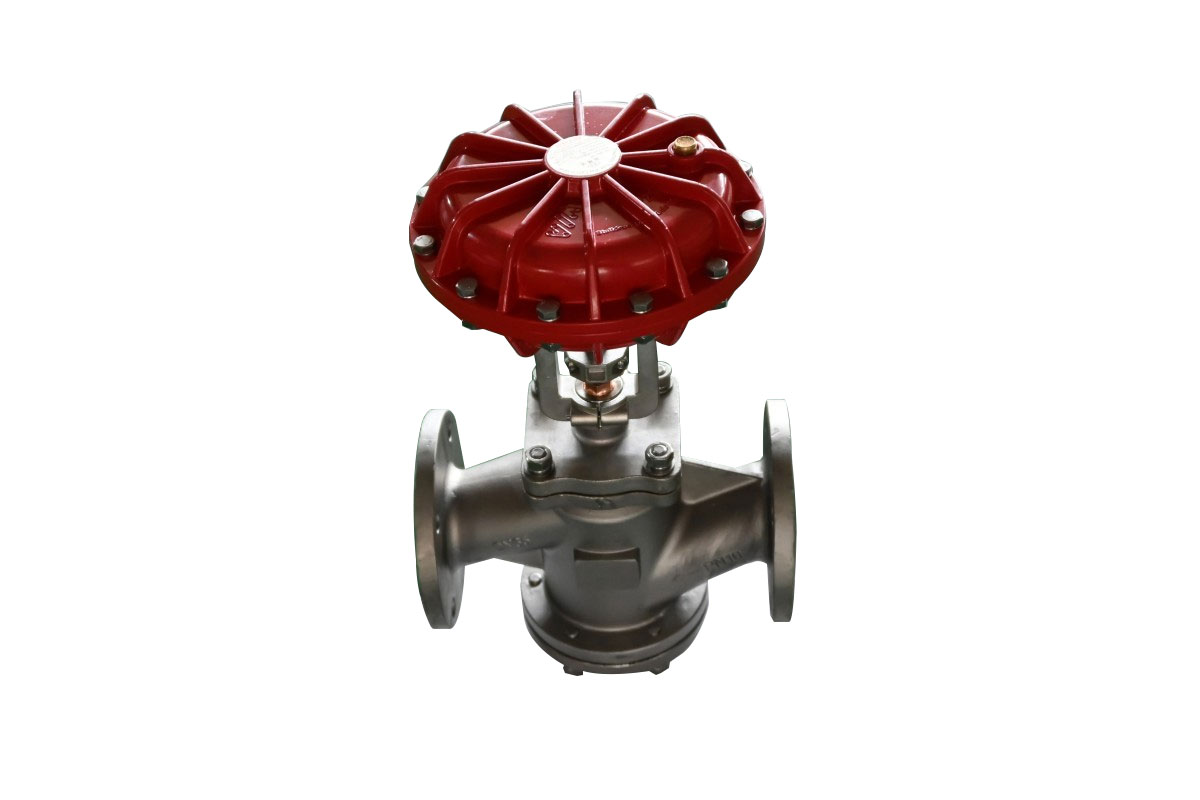

HL valve

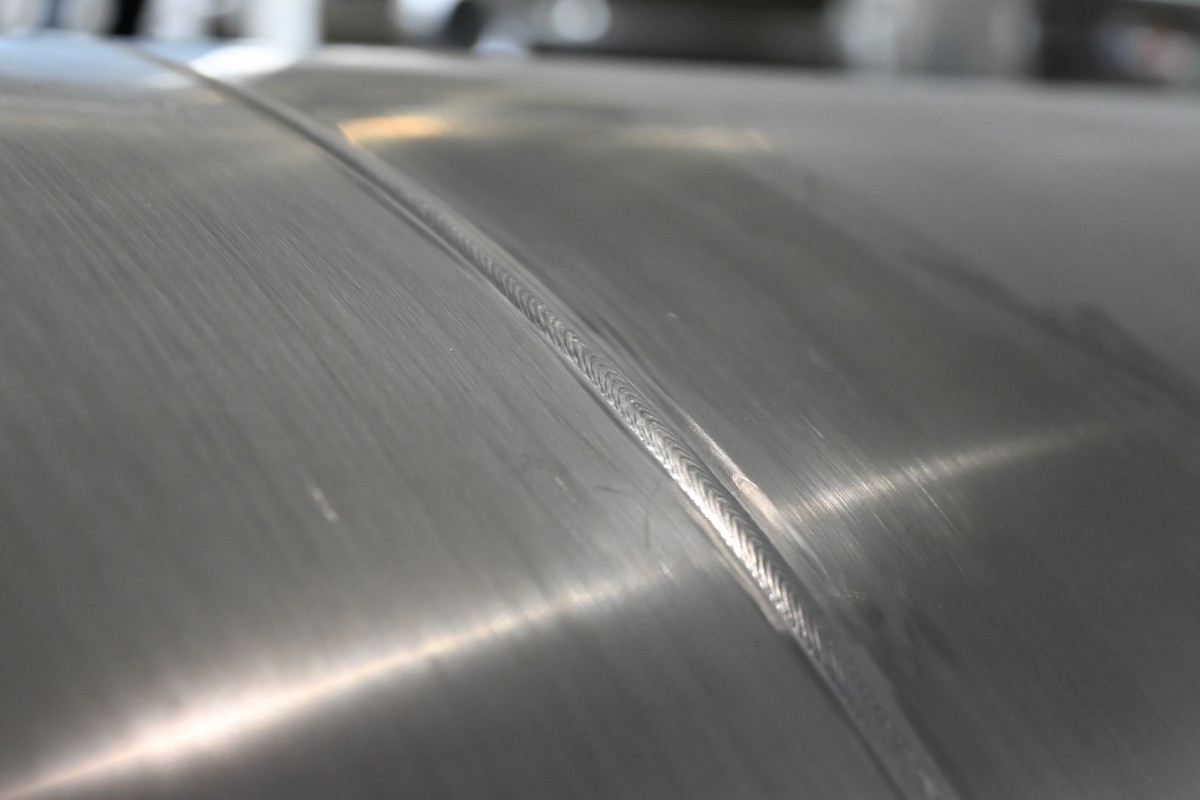

HL weld seam

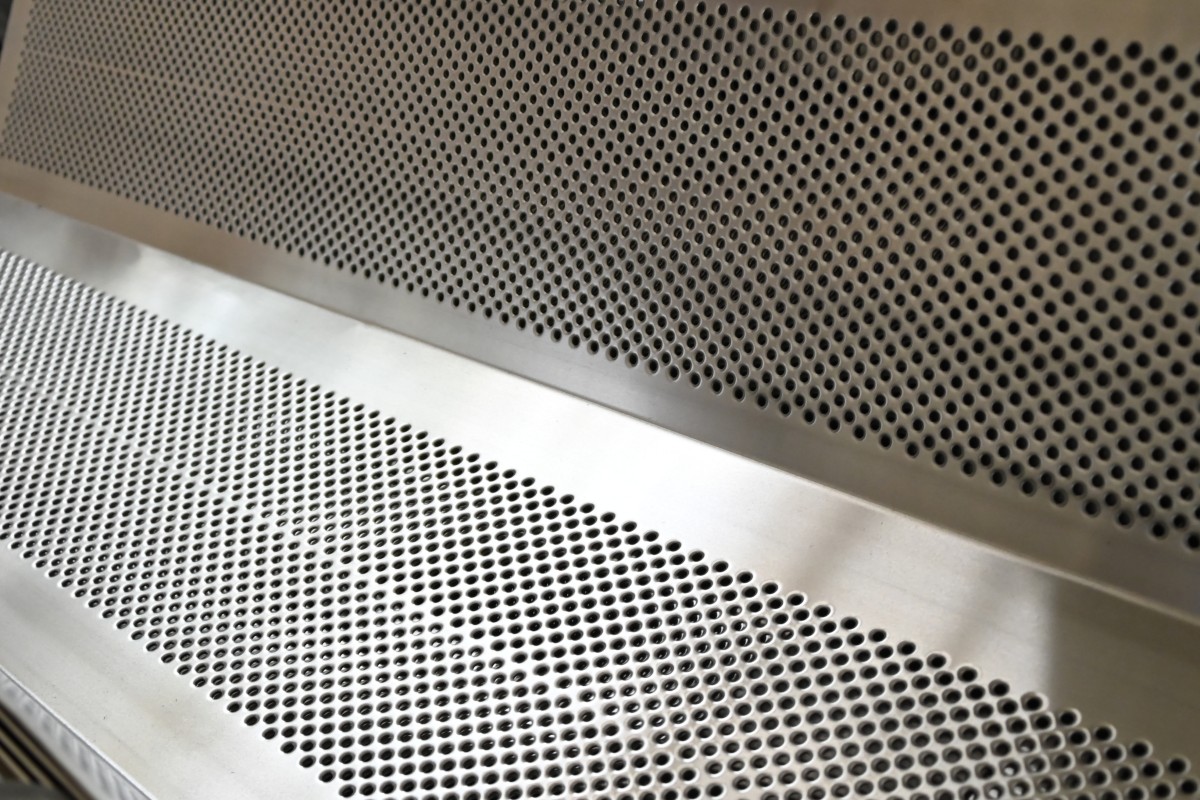

HL inner mesh plate

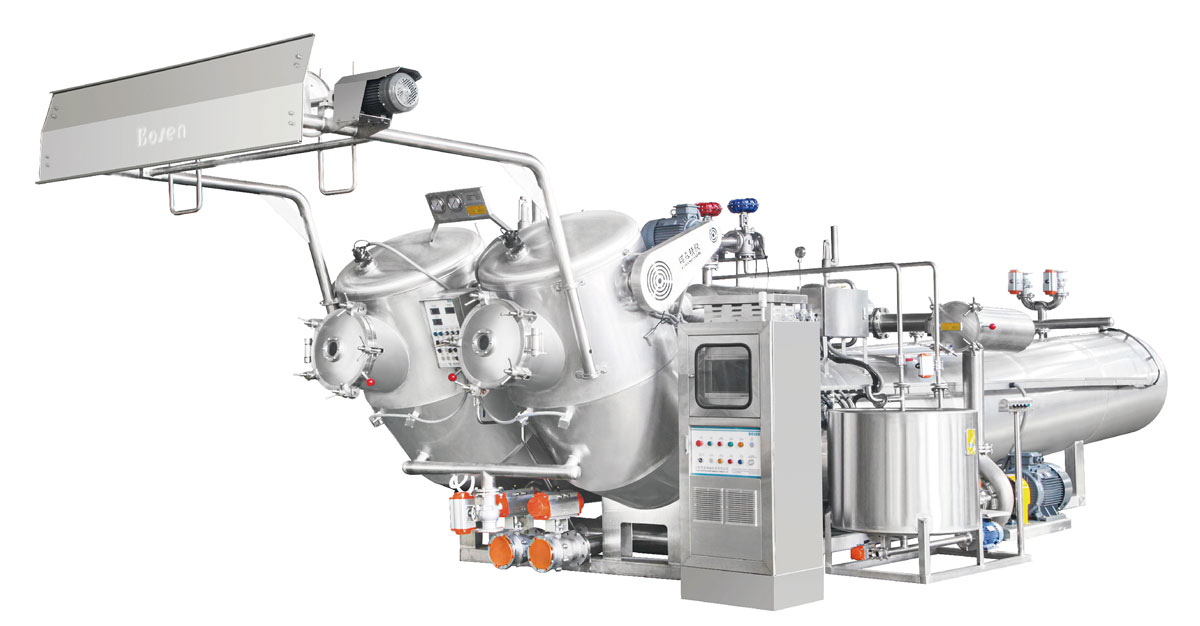

Product introduction

Low liquid ratio, high speed, high efficiency dyeing system

The fabric is in a floating state in the liquid-filled fabric guide tube, without friction with the inner tube wall, and the running speed reaches 300-500m/min, reducing the fuzzing phenomenon. The special "wave" type inner net structure reduces the friction of the fabric, running more smoothly and reducing water consumption, and the liquid ratio can be as low as 1:6~8 (select according to the fabric type and process requirements).

Product features

Structural features Upward-travel type, built-in cloth guide tube, suitable for dyeing various high-end knitted fabrics with a fabric weight range of 50g/m-800g/m.

Low tension, high flow The low-pressure and high-flow nozzles used reduce the running tension of the fabric, reduce hairiness and yarn cracking, and improve the fiber expansion and dyeing effect.

No creases and curling The fabric expansion device allows the fabric to expand appropriately during the buffering process and its shape changes continuously in the dye solution, so that the fabric is not easy to produce creases and curling, achieving the effect of stretching and curling.

Simple operation method The highly intelligent and high-precision computer control program can realize fully automatic DOSING dosing control, as well as efficient water inlet and drainage systems. At the same time, a preparatory cylinder can be purchased to recycle heat energy and reduce costs.

Precise fabric speed control High-performance variable frequency stepless speed regulation can match the fabric speed with the process time in any speed range, avoiding the phenomenon of fabric surface defects caused by mismatch of fabric speed synchronization.
