Product introduction

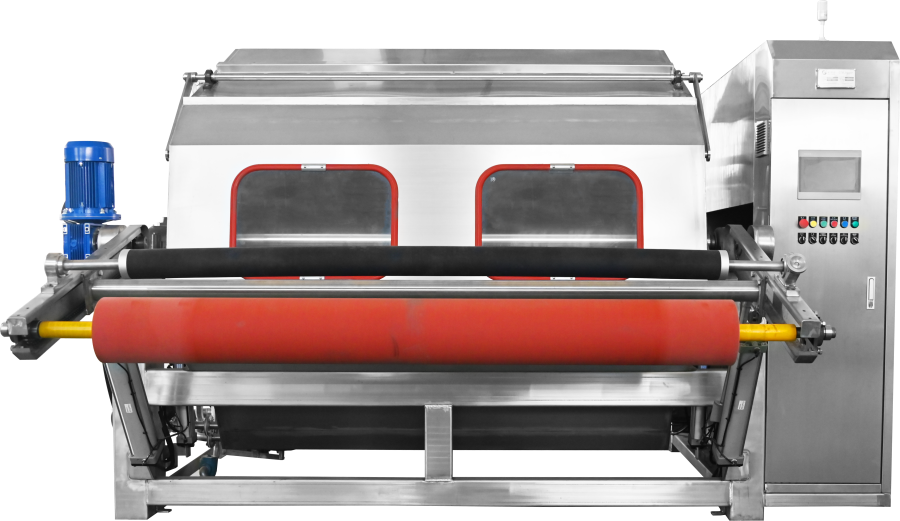

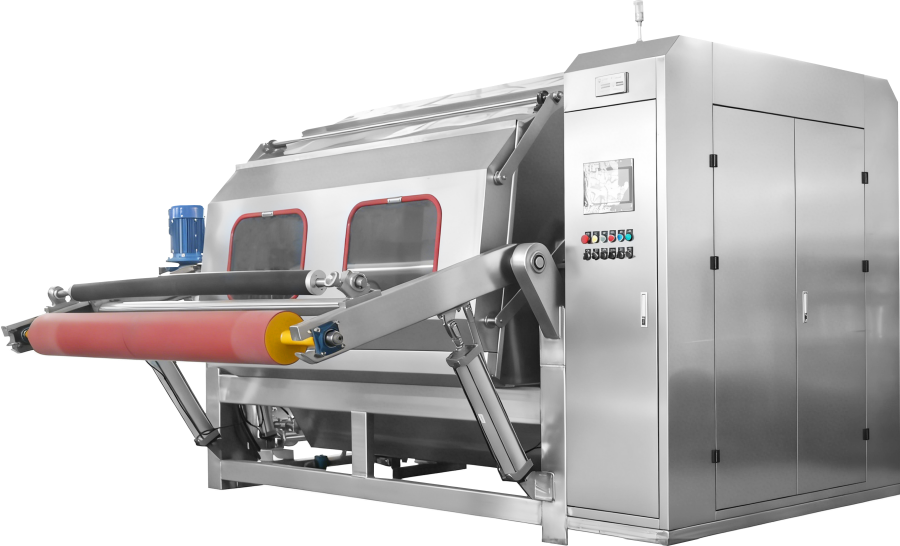

SMD ambient temperature jigger dyeing machine, from small sample dye jigger to giant large capacity dye jigger, is suitable for small batches and multiple varieties. The main models are designed with cloth roll diameters of Φ150mm, Φ600mm, Φ1200mm, Φ1400mm, and Φ1500mm. The outer shell is designed with a sloping top, self-closing door frame, pneumatic opening and closing, two lifting cylinders, top cover heating room temperature, drip-proof, and the top heating stops automatically when the door is opened. The heating method in the dye tank can be selected from direct steam heating and indirect steam heating. The normal temperature dye jigger can be equipped with an active cloth roll roller staggering function and an external heat exchanger. Various functional requirements required by the process can be selected.

Product features

Control panel: The touch-screen computer is easy to operate. Users can easily grasp various working procedures and states through the display screen. The program works automatically according to the preset.

Drive equipment: The vector control drive method is used to precisely control the cloth speed, and the non-blocking dynamic torque control method is used to maintain uniform and constant tension.

• Adopting advanced technology AC frequency conversion transmission, PLC control and data communication technology.
• True direct cloth tension, line speed detection, closed-loop control.
• Using touch screen technology, it has good human-machine interface dialogue function.
• Automatic temperature control, automatic turning, automatic lane recording, automatic reversing, automatic parking and cloth swinging functions.
• The whole machine has a dye liquid circulation system, which can keep the dye liquid temperature and dye uniform. There is also a filter device in the circulation system to prevent pipeline blockage.
• The whole machine is equipped with top cover lighting, fault alarm lights and other auxiliary devices. Safe operation and convenient maintenance.
• Drain valve, air chimney, cloth outgoing cross arm pneumatic control.
• The main components of the whole machine are imported products to ensure stable and reliable operation of the machine performance.
• Fully automatic production process control, which can realize a variety of process combinations.
• Adopts horizontal door type upper and lower screw opening method.
