Product introduction

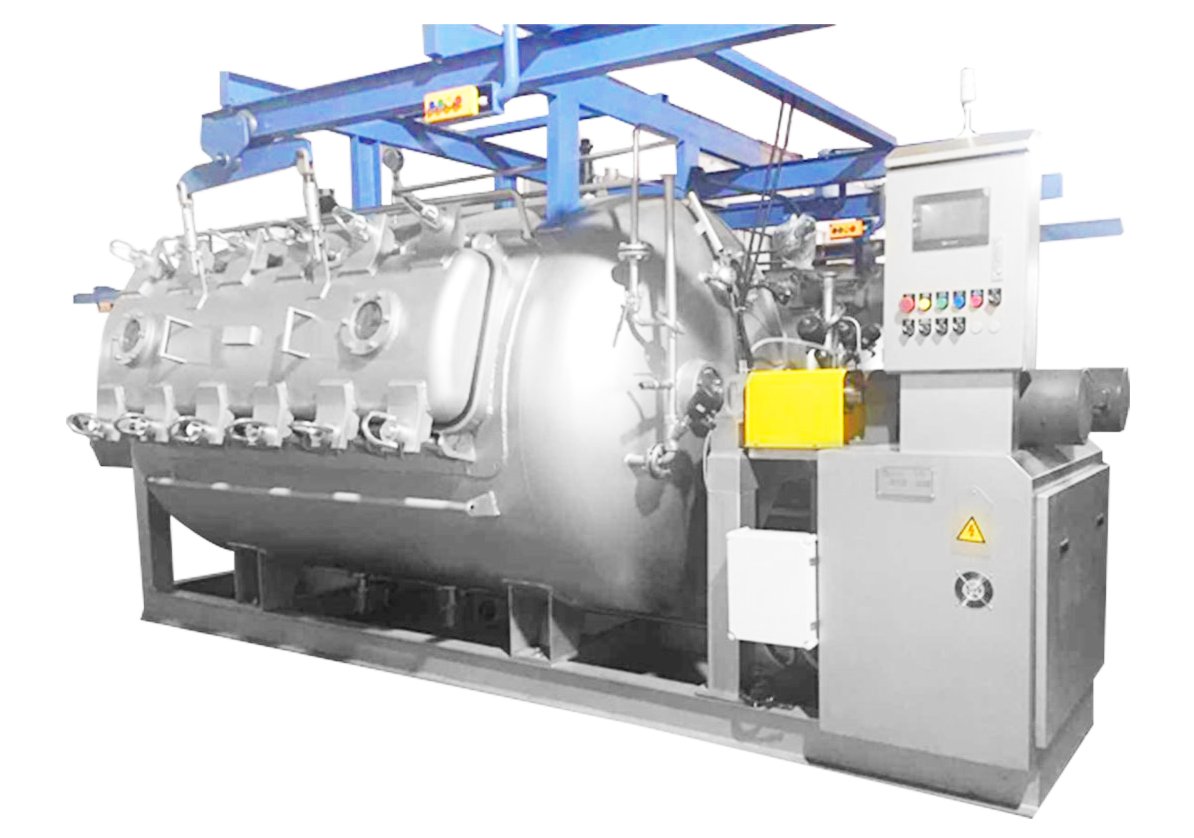

SGR high temperature and high pressure jigger dyeing machine, from small batch models to large capacity dyeing machines, has superior performance. There are four main design models: cloth roll diameter φ680mm, φ800mm, φ1000mm, φ1200mm. The outer body is a high temperature and high pressure cylinder, the working pressure is 3BAR, and the working temperature can reach 140℃. There are two φ150mm observation windows on the operating side, and the pressure vessel is opened with a safety switch. This model has similar extended functions as the normal temperature dyeing machine. Condensed water is concentrated at the bottom of the cylinder and discharged through an automatic valve.

Product features

• Adopting advanced technology AC frequency conversion transmission, PLC control and data communication technology.
• True direct cloth tension, line speed detection, closed-loop control.
• Using touch screen technology, it has good human-machine interface dialogue function.
• Automatic temperature control, automatic turning, automatic lane recording, automatic reversing, automatic parking and cloth swinging functions.
• The whole machine has a dye liquid circulation system, which can keep the dye liquid temperature and dye uniform. There is also a filter device in the circulation system to prevent pipeline blockage.
• The whole machine is equipped with top cover lighting, fault alarm lights and other auxiliary devices. Safe operation and convenient maintenance.
• Drain valve, air chimney, cloth outgoing cross arm pneumatic control.
• The main components of the whole machine are imported products to ensure stable and reliable operation of the machine performance.
• Fully automatic production process control, which can realize a variety of process combinations.
• Adopts horizontal door type upper and lower screw opening method.
